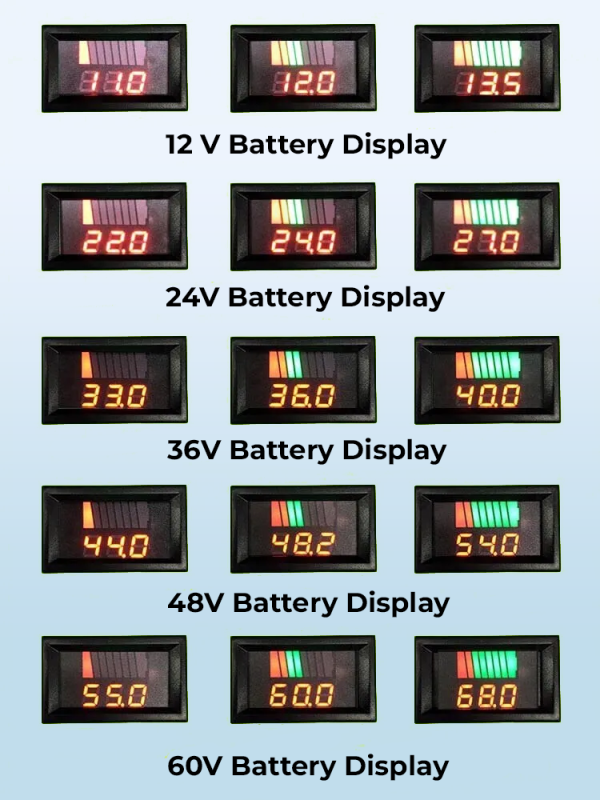

Wide Voltage Compatibility: Supports 12V, 24V, 36V, 48V, and 60V systems, making it suitable for a wide range of vehicles and battery types.

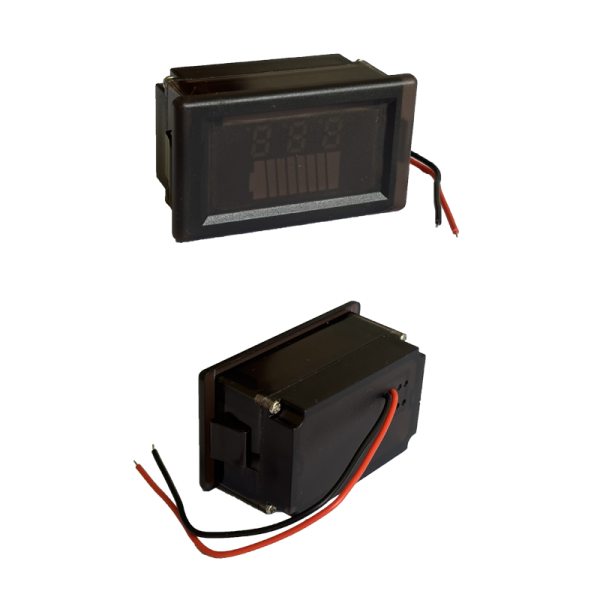

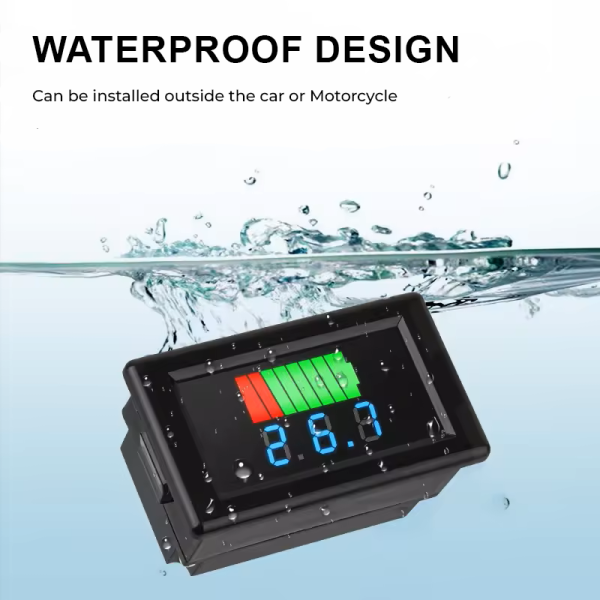

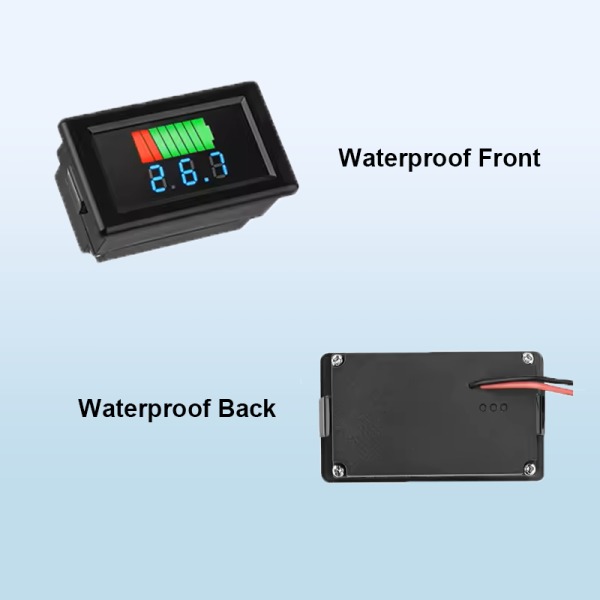

Waterproof Design: Built with a water-resistant housing, making it suitable for outdoor use and protection against splashes, moisture, and light rain.

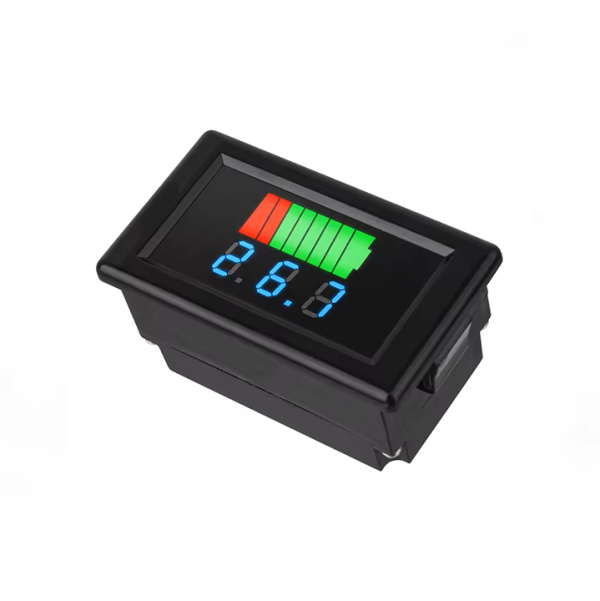

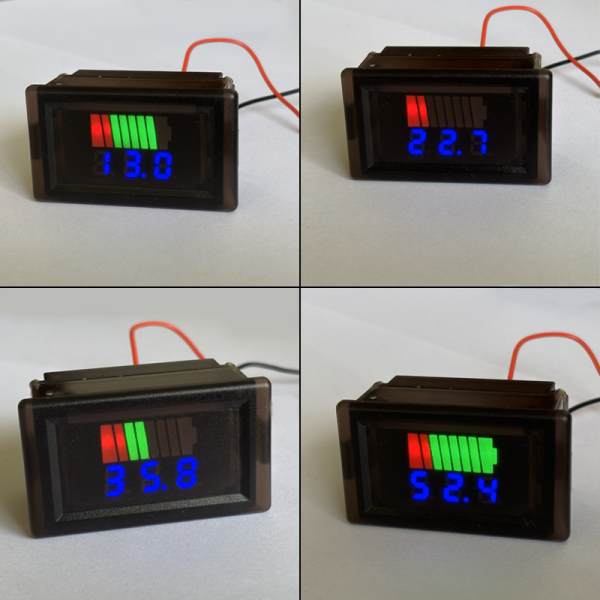

Dual Display Function: Combines battery capacity and voltage monitoring in one unit. The digital LED display ensures accurate and easy-to-read measurements at all times.

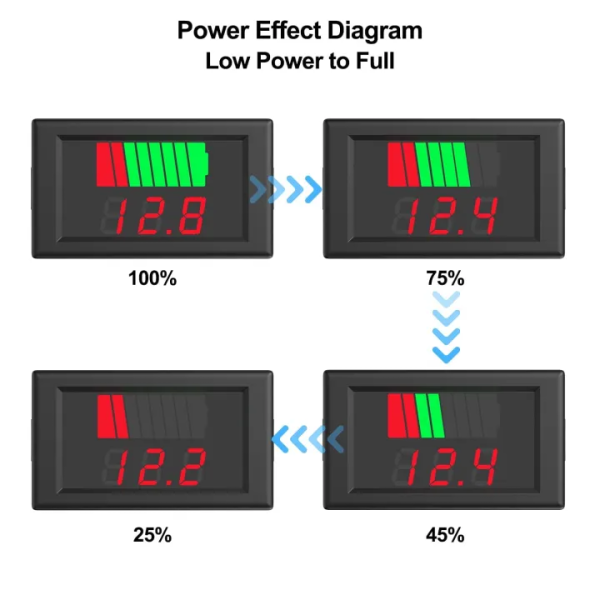

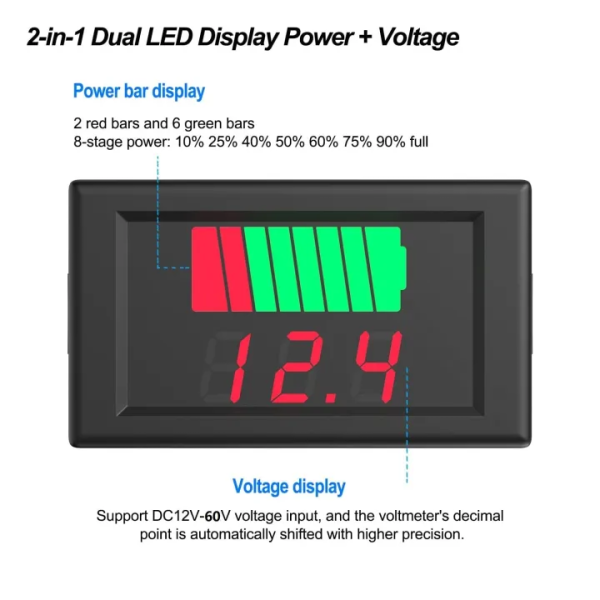

Clear LED Power Indicator: The top LED bar visually displays battery charge level using 8 segments:
2 red bars for low battery
6 green bars for normal to full charge
High Accuracy & Reliability: Provides precise voltage readings, helping you easily track remaining battery power and avoid unexpected power loss.
User-Friendly Design: Simple wiring and intuitive display make it suitable for both professionals and everyday users.
Versatile Battery Support: Fully compatible with lithium-ion and traditional lead-acid batteries, making it a practical addition to any vehicle or battery-powered system.
Specifications
Applicable Voltage: 12V / 24V / 36V / 48V / 60V
Display Type: Three 0.56″ LED digital tubes
Display Mode: 2-in-1 power level and voltage display
Working Current: 5–15 mA
Refresh Rate: Approximately 300 ms
LED Colors: 2 red bars + 6 green bars
Product Size: 56 mm x 33 mm × 27 mm
Panel Cutout Size: 51 mm × 31 mm
Installation

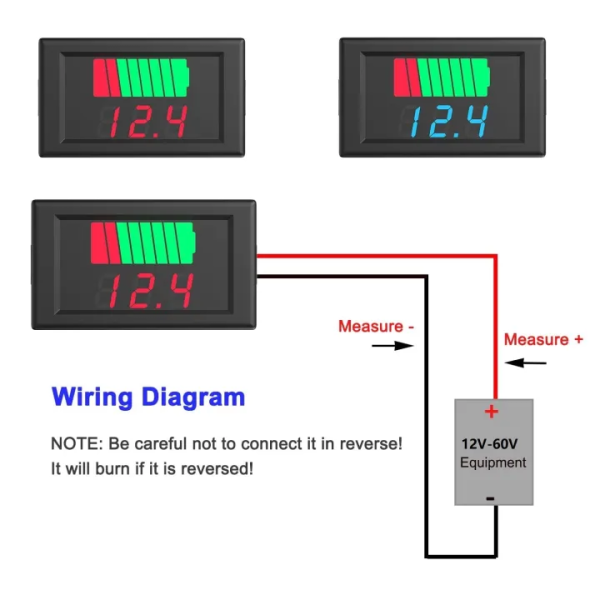

Connect the positive and negative terminals of the display directly to the corresponding terminals of the battery being tested.
⚠️ Important: Do not reverse the polarity. Incorrect wiring may damage the device.
